2058

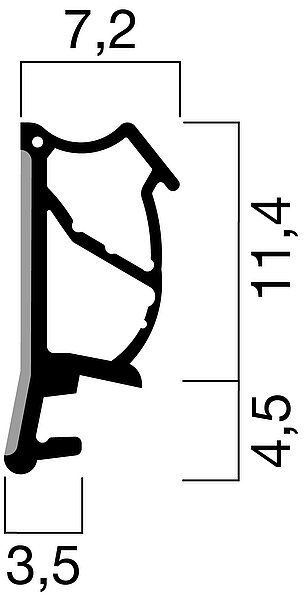

Window seal – for sash rebate and overlap
Product selection
Select a product version so we can show you the exact availability and price.
+43 5574 74177-0
Finishes
| Order number | Finish | Partial pack | ctn | UVP / Meter | Krt. | Total Meter | |||
|---|---|---|---|---|---|---|---|---|---|
| AFK2058-WE/2 |
white
|
200 | 200 | EUR 1,94 |
Available immediately
On request
Quantity on request
|
||||
| AFK2058-BE/2 |
beige
|
200 | 200 | EUR 1,94 |
Available immediately
On request
Quantity on request
|
||||
| AFK2058-OC/2 |
ochre
|
200 | 200 | EUR 1,94 |
Available immediately
On request
Quantity on request
|
||||
| AFK2058-DB/2 |
dark brown
|
200 | 200 | EUR 1,94 |
Available immediately
On request
Quantity on request
|
||||
| AFK2058-LG/2 |
light grey
|
200 | 200 | EUR 1,94 |
Available immediately
On request
Quantity on request
|
||||
| AFK2058-GR/2 |
grey
|
200 | 200 | EUR 1,94 |
Available immediately
On request
Quantity on request
|
||||
| AFK2058-GG/2 |
charcoal grey
|
200 | 200 | EUR 1,94 |
Available immediately
On request
Quantity on request
|
||||
| AFK2058-SC/2 |
black
|
200 | 200 | EUR 1,94 |
Available immediately
On request
Quantity on request
|
||||
| AFK2058-WE/KB |
white
|
6 | 6 | EUR 3,24 |
Available immediately
On request
Quantity on request
|
||||
| AFK2058-BE/KB |
beige
|
6 | 6 | EUR 3,24 |
Available immediately
On request
Quantity on request
|
||||
| AFK2058-OC/KB |
ochre
|
6 | 6 | EUR 3,24 |
Available immediately
On request
Quantity on request
|
||||
| AFK2058-DB/KB |
dark brown
|
6 | 6 | EUR 3,24 |
Available immediately
On request
Quantity on request
|
||||
| AFK2058-LG/KB |
light grey
|
6 | 6 | EUR 3,24 |
Available immediately
On request
Quantity on request
|
||||
| AFK2058-GR/KB |
grey
|
6 | 6 | EUR 3,24 |
Available immediately
On request
Quantity on request
|
||||
| AFK2058-GG/KB |
charcoal grey
|
6 | 6 | EUR 3,24 |
Available immediately
On request
Quantity on request
|
||||
| AFK2058-SC/KB |
black
|
6 | 6 | EUR 3,24 |
Available immediately
On request
Quantity on request
|
Description

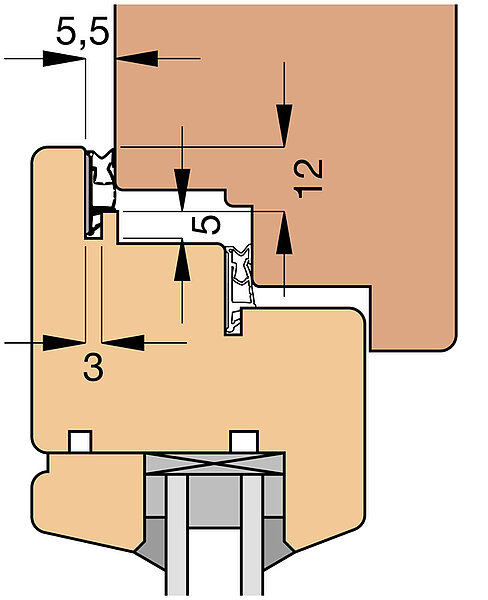

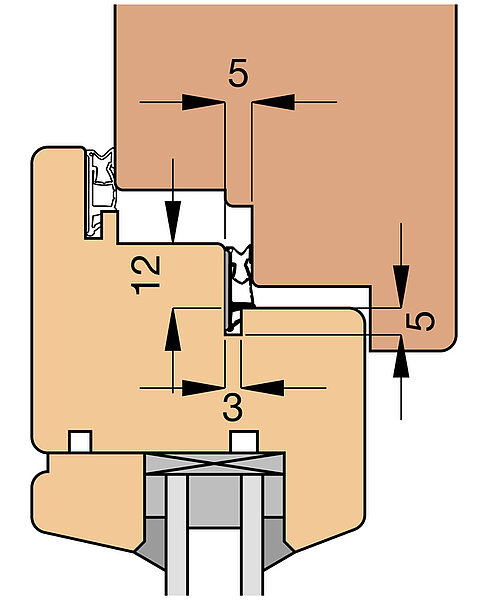

Installation sketch of a complete system
for a timber/aluminium window (M 1:3)
1 - 1 seal for sash rebate and overlap (AFK2058)
2 - Dry glazing for outside (e.g. SGFK31207)
3 - Dry glazing for inside (e.g. AA2907)
4 - Stop seal (e.g. FF2048)
5 - Joint end seal (e.g. AF31263)
6 - Connection seal (e.g. A 31106)
Installation profile AFK2054 (AFK2058) with corner pieces A 2054E1(3) and A 2054E2
Application: The AFK2058 window gasket has been developed for a triple groove and can therefore be used for both the sash rebate and the overlap.

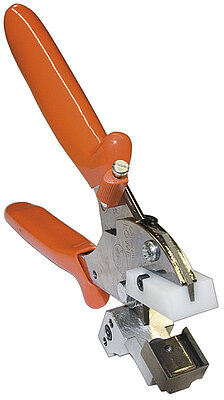

For notching: With 1 extruded thread and hard back.
Continuous sealing lip: The sealing lip is not cut when notching. The resulting continuous sealing lip enables the best sealing results. In addition, the AFK2058 window gasket is designed in such a way that it rests twice on the rebate, thus ensuring optimum tightness.
Use in timber/aluminium windows: The AFK2058 window gasket is also ideal for use in timber/aluminium windows.
Downloads
CAD data
2058 - installed condition [ dwg ]
